SMA – Right Angle Crimp Plug RG178


FOR ORDERS OVER 500 UNIT DIRECTLY CONTACT US

Pricing Bundle

Quantity Price
1 - 9 $7.91
10 - 49 $6.44
50 - 99 $5.44
100+ $4.59
SKU: SALM11GT-178 Categories: , Tags: , , , , , ,
Category Connector

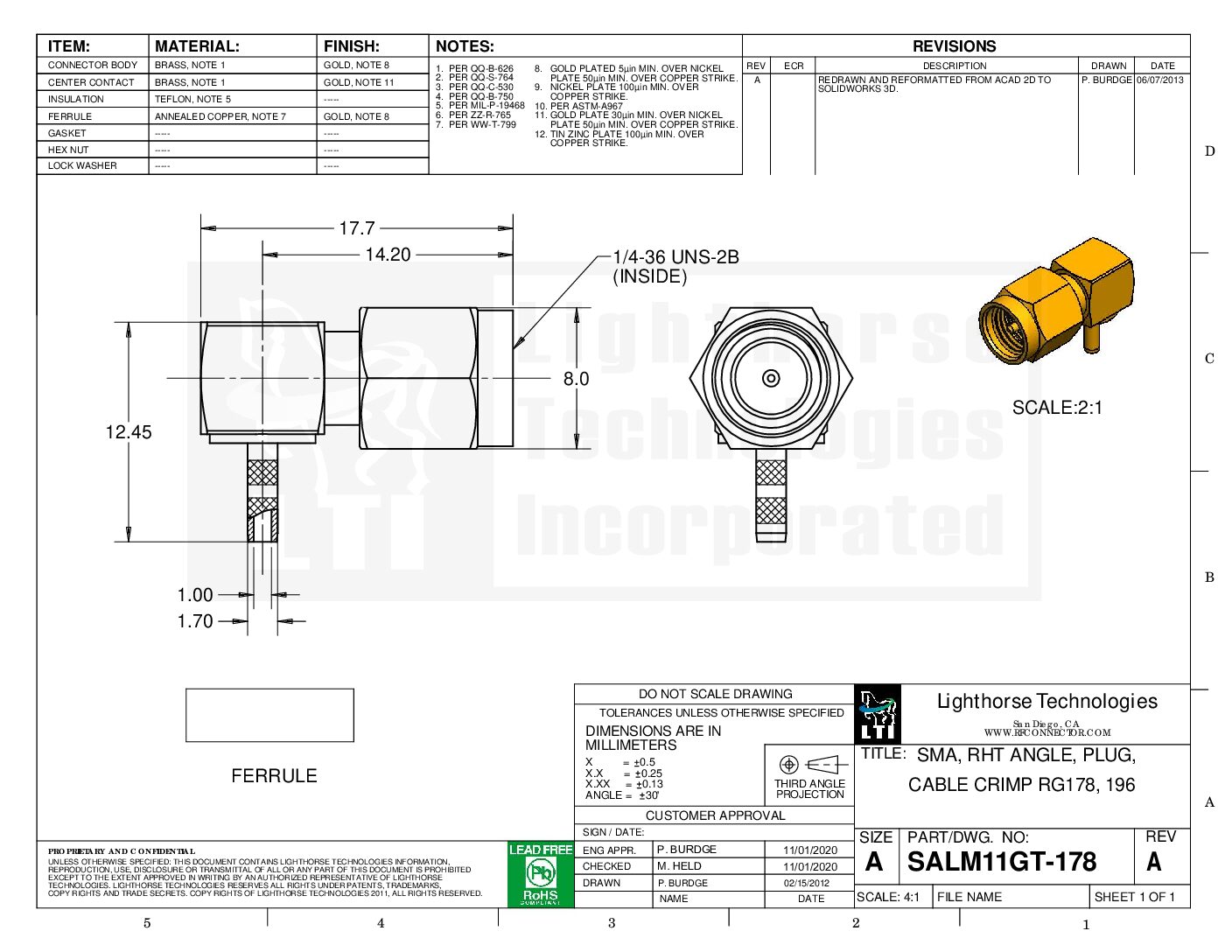

Part Number SALM11GT-178
Part Status Active
Series SMA
Impedance 50 Ohm
Gender Male / Plug
Orientation Right Angel
Termination Cable Crimp
Mounting Style Cable
Special none
Plating Gold
Dielectric Teflon
Compatible Cable RG-178, RG-196

Please Visit our Catalogs page for more spec sheets

SMA connector are semi-precision subminiature devices that provide repeatable electrical performance from DC to 12.4 Ghz with flexible cable. Semi-rigid cabling extends the frequency range of the device to 18Ghz. These devices offer broadband performance with low reflections and constant 50 ohm impedance. These properties, along with minimum attenuation and low reflections and constant 50 ohm impedance. These properties, along with minimum attenuation and low VSWR have made the SMA extremely popular in the microwave community. LTI SMA connectors are designed to conform to MIL-C-39012 specifications.

The SMA design has been broadened to accommodate many interconnect requirements and is available in pressure crimp, clamp, and solder terminal attachments. SMA design parameters have incorporated the considerations of balancing cost, size, weight and performance to yield the best value in your microwave system. Among typical applications are components such as dividers, mixers amplifiers, trimmers and attenuators. SMA connectors are also used to provide interconnections from printed circuit board striplines to coaxial cable
