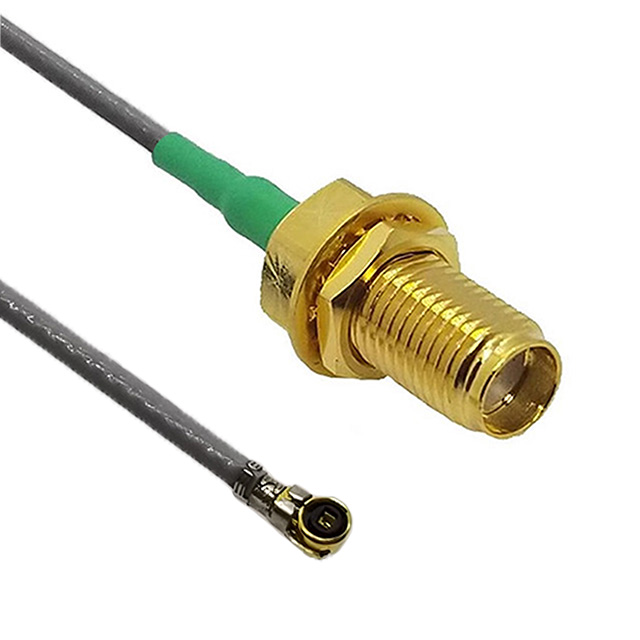

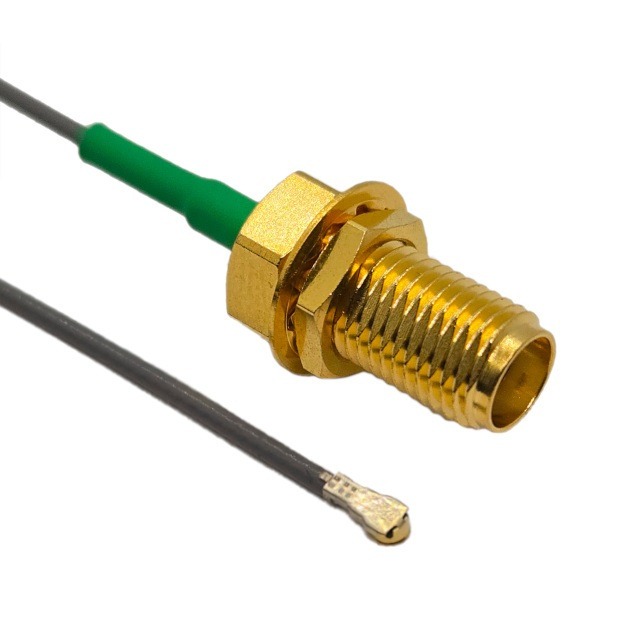

CB1.17LL-IPX4L-SAF3GT high performance
FOR ORDERS OVER 500 UNIT DIRECTLY CONTACT US
| Category | Cable Assemblies |
| Series | MHF4L |
| Part Status | Active |
| 1st Connector | SMA Jack Bulkhead |
| 2nd Connector | IPEX MHF4L Plug, Right Angle |
| Frequecny – max | 12 GHz |
| Cable Type | 1.17mm OD LL Coaxial Cable |
| Overall Impedance | 50 Ohms |
| Operating Temperature | -40°C ~ 90°C |

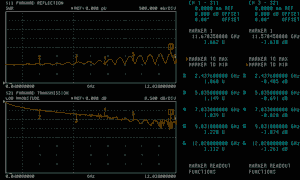

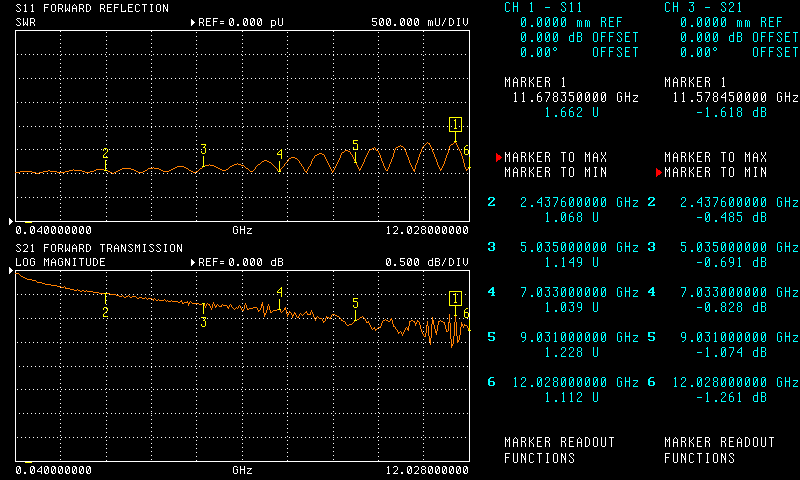

P/N:CB1.17LL-IPX4L-SAF3GT-6IN
| Frequency (GHz) | VSWR (Max) | Insertion Loss (dB) |
|---|---|---|
| 2.4 | 1.068 | -0.485 |
| 5 | 1.149 | -0.691 |
| 7 | 1.039 | -0.828 |
| 9 | 1.228 | -1.074 |
| 12 | 1.112 | -1.261 |
Please Visit our Catalogs page for more spec sheets
