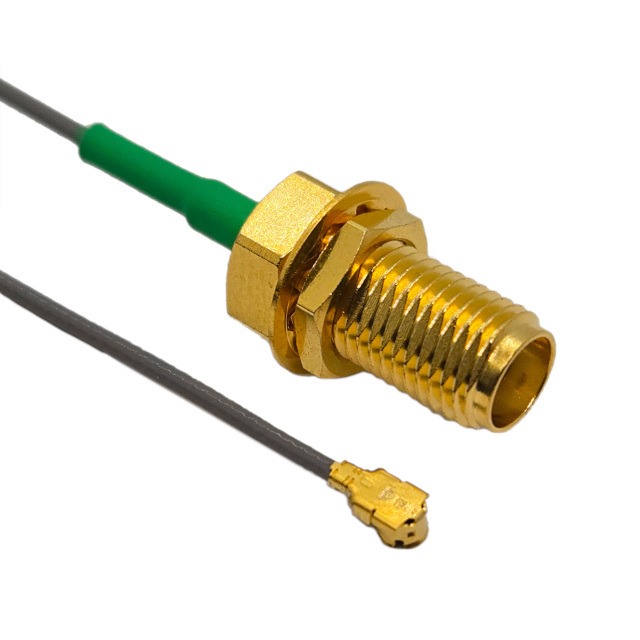

CB1.17LL-IPX-SAF3GT high performance

CB1.17LL-IPX-SAF3GT high performance - Image 2

CB1.17LL-IPX-SAF3GT high performance - Image 3

CB1.17LL-IPX-SAF3GT high performance - Image 4

CB1.17LL-IPX-SAF3GT high performance

FOR ORDERS OVER 500 UNIT DIRECTLY CONTACT US

Cable Length

Pricing Bundle

Quantity	Discount (%)	Price
1 - 9	—	$8.76
10 - 24	11.07 %	$7.79
25 - 49	19.98 %	$7.01
50 - 99	27.28 %	$6.37
100 - 249	33.33 %	$5.84
250+	38.47 %	$5.39

Pricing Bundle

Quantity	Discount (%)	Price
1 - 9	—	$8.76
10 - 24	11.07 %	$7.79
25 - 49	19.98 %	$7.01
50 - 99	27.28 %	$6.37
100 - 249	33.33 %	$5.84
250+	38.47 %	$5.39

Pricing Bundle

Quantity	Discount (%)	Price
1 - 9	—	$8.97
10 - 24	11.15 %	$7.97
25 - 49	19.96 %	$7.18
50 - 99	27.31 %	$6.52
100 - 249	33.33 %	$5.98
250+	38.46 %	$5.52

Pricing Bundle

Quantity	Discount (%)	Price
1 - 9	—	$9.18
10 - 24	11.11 %	$8.16
25 - 49	20.04 %	$7.34
50 - 99	27.34 %	$6.67
100 - 249	33.33 %	$6.12
250+	38.45 %	$5.65

Pricing Bundle

Quantity	Discount (%)	Price
1 - 9	—	$9.39
10 - 24	11.18 %	$8.34
25 - 49	20.02 %	$7.51
50 - 99	27.26 %	$6.83
100 - 249	33.33 %	$6.26
250+	38.45 %	$5.78

Category	Cable Assemblies
Series	MHF1
Part Status	Active
1st Connector	SMA Jack Bulkhead
2nd Connector	IPEX MHF1 Plug, Right Angle
Frequecny – max	9 GHz
Cable Type	1.17mm OD LL Coaxial Cable
Overall Impedance	50 Ohms
Operating Temperature	-40°C ~ 90°C

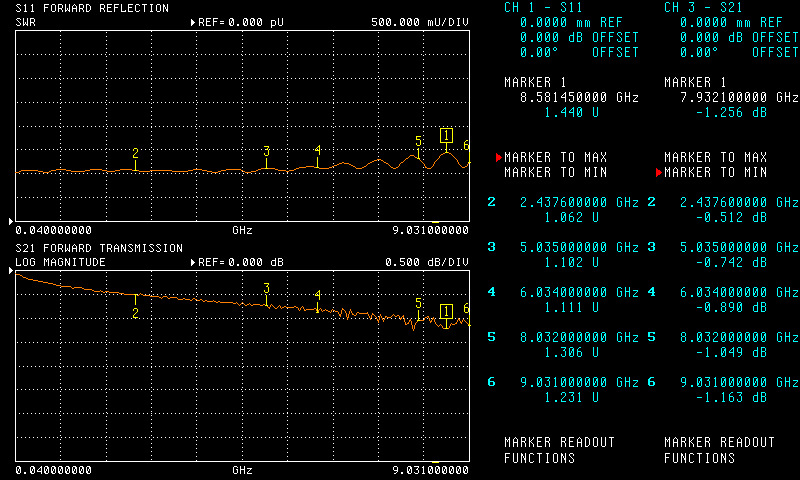

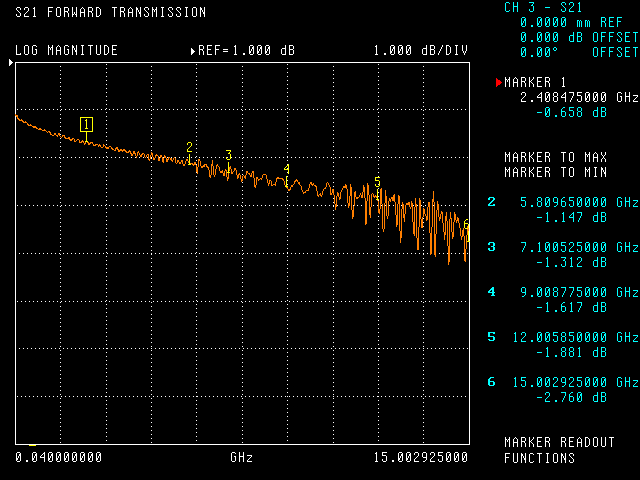

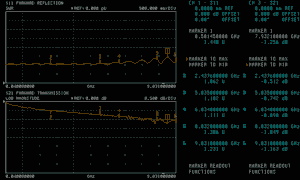

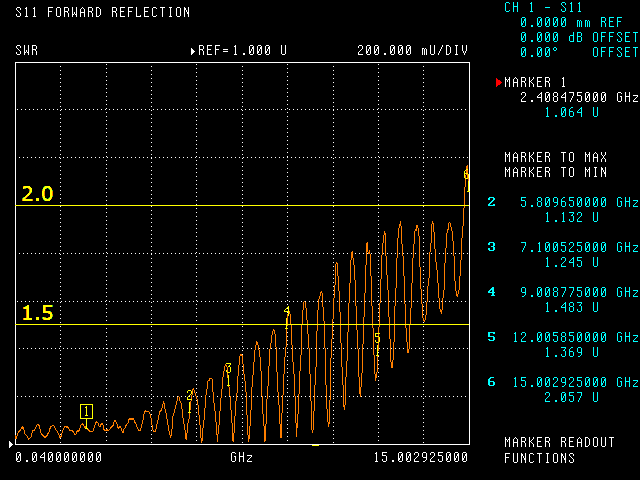

Frequency (GHz)	SWR (Unit:1)	Insertion Loss (dB)
DC-3	1.2	-0.9
3-6	1.4	-1.3
6-9	1.7	-1.9
9-12	2.0	-2.8

Please Visit our Catalogs page for more spec sheets

DOWNLOAD CB1.17LL-IPX-SAF3GT-xx_rev-1-High-performance.pdf
