I-PEX® MHF® Micro-Coax Cable Assemblies
Lighthorse Technologies, Inc.’s micro-coax cable assemblies with I-PEX MHF connectors have a compact form factor, making them suitable for small and portable electronic devices where space is limited. They are designed to handle high-frequency signals up to 9GHz and 12 GHz, making MHF connectors ideal for applications such as Wi-Fi, Bluetooth®, 5G, 4G LTE, and other wireless communication protocols. They offer excellent signal integrity and low insertion loss, ensuring reliable and high-quality signal transmission. Order a custom cable assembly today!

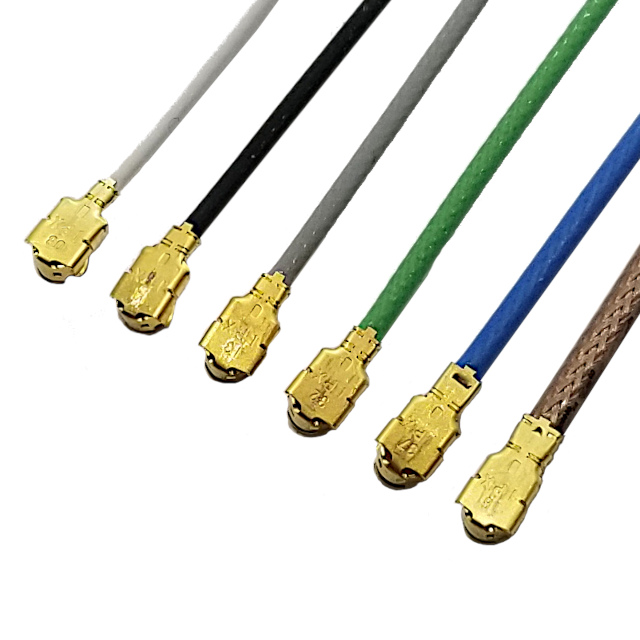

MHF 1 Features
- Frequency range: up to 9 GHz
- Available on 0.81 mm, 1.13 mm, 1.17LL mm,
1.32D mm, 1.37 mm, and RG-178 - Mated height: 2.5 mm
- VSWR max: (DC – 3 GHz) 1.3
- VSWR max: (3 GHz – 6 GHz) 1.5
- VSWR max: (6 GHz – 9 GHz) 1.6
- Impedance: 50 Ω

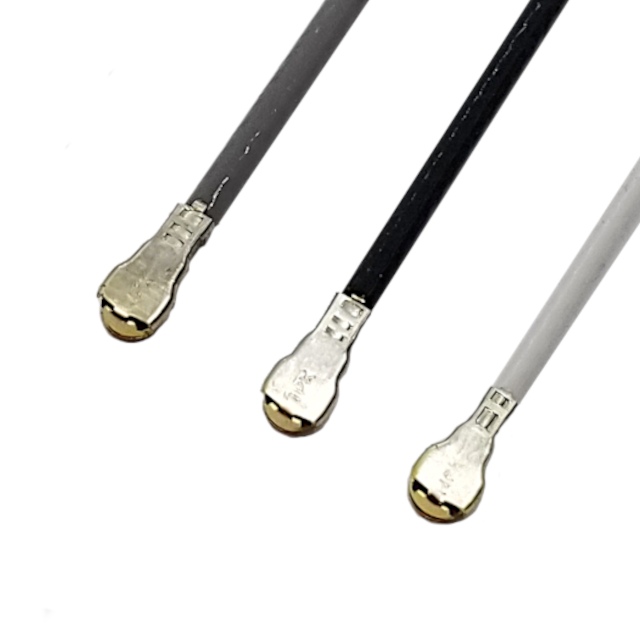

MHF 4L Features
- Frequency range: up to 12 GHz
- Available on 0.81 mm, 1.13 mm and 1.17LL mm
- Mated height: 1.2 mm on 0.81 mm coax
- Mated height: 1.4 mm on 1.13 mm and 1.17 LL mm coax
- VSWR max: (DC – 3 GHz) 1.3
- VSWR max: (3 GHz – 6 GHz) 1.45
- VSWR max: (6 GHz – 9 GHz) 1.6
- VSWR max: (9 GHz – 12 GHz) 1.9
- Impedance: 50 Ω
Contact us For more information.
MHF 4L Coax Cable Assemblies
| Image | Part Number | Series | Cable Type | View Details |
|---|---|---|---|---|
 |

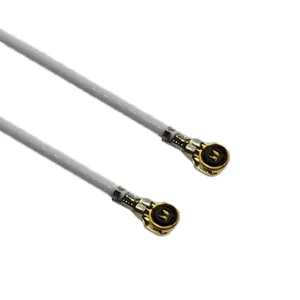

CB0.81-2IPX4L | MHF 4L | 0.81mm | |
 |

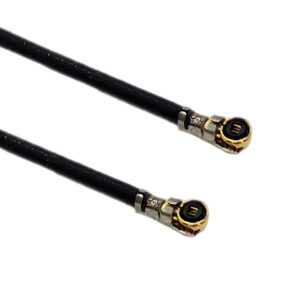

CB1.13-2IPX4L | MHF 4L | 1.13mm | |
 |

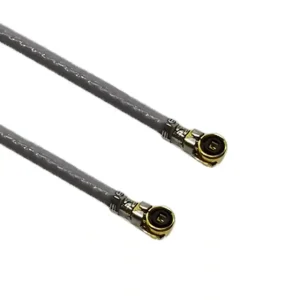

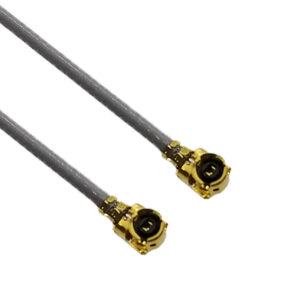

CB1.17LL-2IPX4L | MHF 4L | 1.17mm Low Loss |

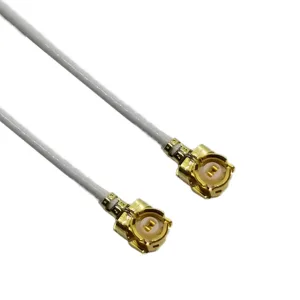

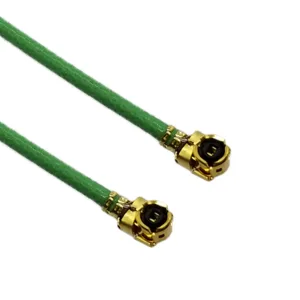

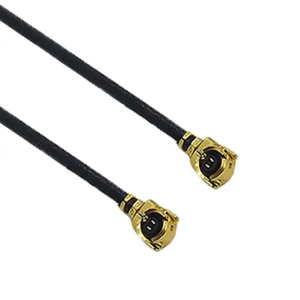

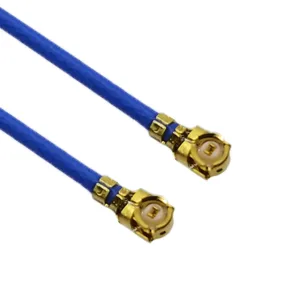

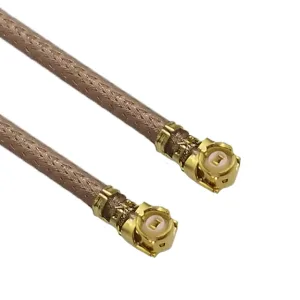

MHF 1 Coax Cable Assemblies
